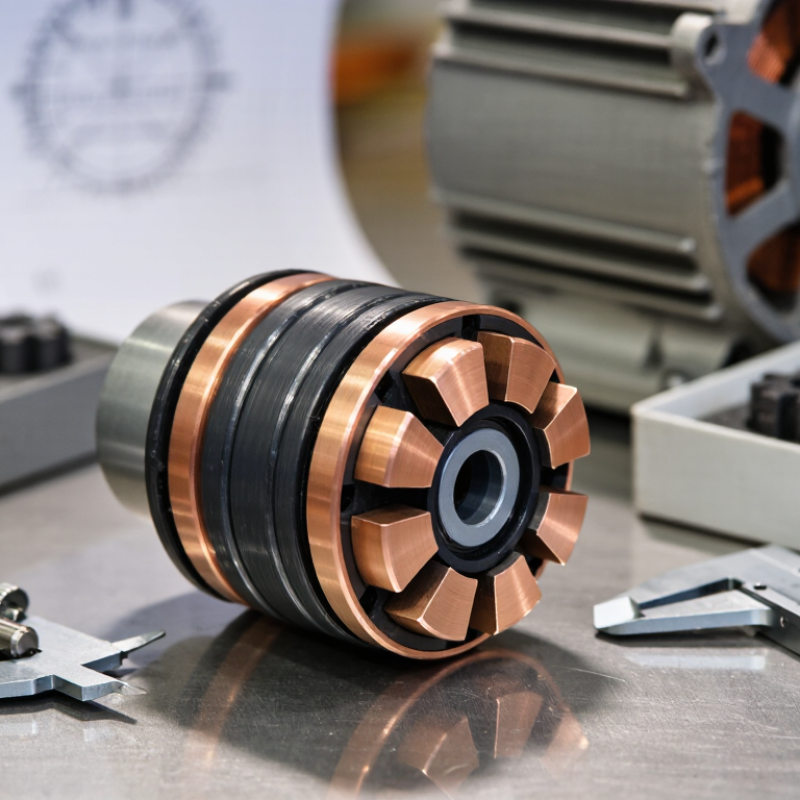

How to Choose a Fuel Pump Carbon Commutator in 2026?

Choosing a Fuel Pump Carbon Commutator in 2026 means balancing electrical performance, wear life, and manufacturing consistency. The global vehicle market remains substantial: OICA reported approximately 93.5 million vehicles produced in 2023. Meanwhile, the International Energy Agency reported nearly 14 million electric-car sales that year. These figures provide market context, not a direct forecast for fuel-pump demand. They do, however, underline why component selection should reflect the intended vehicle platform and service life.

The details matter. A commutator may look like a small copper-and-carbon assembly, yet brush contact, surface finish, heat, and dimensional stability can affect pump current and durability. R. Krishnan, author of Electric Motor Drives, provides a useful engineering perspective: motor design must match the machine to its operating conditions. This is a paraphrase of his technical approach, not a direct quotation. A verifiable, topic-specific quotation from a named fuel-pump commutator specialist was not available, so assigning one would be misleading. In practice, compare the commutator’s material specification, runout, contact surface, and test results against the pump’s actual load and temperature range. Ask suppliers for traceable data, not just a catalog claim. Small tolerances matter. No single material wins everywhere; that point deserves scrutiny. A well-chosen Fuel Pump Carbon Commutator should be assessed as part of the complete motor assembly, with evidence from repeatable testing guiding the final decision.

Understand the Role of a Carbon Commutator in a Fuel Pump

Identify the Pump’s Electrical and Mechanical Requirements

Before selecting a carbon commutator, map the pump’s electrical load across real operating conditions. Record nominal voltage, startup current, steady current, and brief peak current with the pump installed. A bench reading alone can miss voltage drop through wiring and connectors. SAE J537’s cold-cranking test evaluates a 12-volt battery at −18°C, using 7.2 volts as a key voltage threshold after 30 seconds. That is a battery test, not a pump rating, but it highlights why low-voltage starting deserves attention. Check the motor’s actual operating limits against vehicle supply conditions; ISO 16750-2 provides automotive electrical-supply test guidance.

Mechanical fit matters just as much. Measure the commutator diameter, segment count, shaft interface, and permitted runout, then compare them with the original assembly drawing. Small geometry errors can create uneven brush contact, local heating, or accelerated wear. Confirm brush grade and spring force under operating temperature, not only at room temperature. Also check whether the commutator’s binder and insulation tolerate the pump’s fuel exposure. Details get missed here. A practical validation uses current, temperature, and vibration measurements during repeated starts and sustained operation. Keep test conditions documented, including fuel temperature and supply voltage. One imperfect assumption to challenge: matching the old part’s dimensions does not prove its material or current capacity is suitable for a revised pump design.

Compare Carbon Grades, Conductivity, and Wear Resistance

Choosing a fuel pump carbon commutator starts with its electrical load and operating environment. A highly conductive grade can reduce voltage loss and heat at the contact surface. But conductivity alone does not predict service life. Small differences matter.

Carbon grades vary in structure, hardness, and binder composition. Softer grades may maintain contact on a slightly uneven surface, yet can wear faster. Harder grades may last longer in some designs but could increase brush wear or contact noise. Ask for grade data and test results under conditions close to your pump’s current, speed, and temperature. A datasheet is useful, but it cannot tell the whole story.

Wear resistance depends on more than the carbon itself. Brush pressure, commutator finish, motor alignment, and fuel exposure all affect performance. Compare resistance and wear measurements taken with the same test method; figures from different methods may mislead. Check whether the material is compatible with the intended fuel and temperature range. If possible, run a controlled endurance test and inspect the surface for grooves, dust, or uneven wear. I would not choose a grade from one conductivity number alone. Some trade-offs only become clear after testing.

Check Dimensions, Brush Compatibility, and Manufacturing Quality

Choosing a fuel pump carbon commutator starts with matching its dimensions to the motor, not relying on a visual estimate. Measure the outer diameter, bore, axial thickness, and segment count against the original part or a verified drawing. Check the shaft fit and segment spacing, too. A small mismatch can cause uneven contact or vibration. Measure twice.

Brush compatibility matters just as much. Confirm the brush material, contact width, spring pressure, and operating current are suitable for the commutator. A brush that is too wide may bridge segments; one that is too narrow can wear unevenly. Look for smooth contact surfaces and consistent seating. Test fit matters.

Manufacturing quality is easier to judge with specific checks. Ask for dimensional inspection records, runout limits, and evidence of consistent segment bonding and surface finishing. Inspect samples for chips, loose segments, rough edges, or inconsistent spacing. These defects may be subtle at first. In practical sourcing, a supplier’s inspection process can be more informative than a polished product photo, though paperwork alone cannot prove performance. Compare more than one sample when possible, and record any differences. I would not assume an old part is a perfect reference; it may already be worn or distorted.

Verify Testing, Safety Standards, and Supplier Support for 2026
